Industrial Membrane Nitrogen Generator For Food And Beverage 220V/50Hz

Industrial Membrane Nitrogen Generator For Food And Beverage 220V/50Hz

Membrane Nitrogen Generator Technical Features

1). Full Automation

All systems are designed for un-attended operation and automatic Oxygen demand adjustment.

2). Lower Space Requirement

The design and Instrument makes the plant size very compact,assembly on skids,prefabricated from factory.

3). Fast Start-up

Start-up time is only 5 minutes to get desired Oxygen purity.So these units can be switched ON&OFF as per Oxygen demand changes.

4). High Reliabiity

Very reliable for continuous and steady operation with constant Oxygen purity.Plant availability time is better than 99% always.

5). Molecular Sieves life

Expected Molecular sieves life is around 15-years i.e. whole life time of Oxygen plant.So no replacement costs.

6). Adjustable

By altering flow,you can deliver nitrogen with precisely the right purity.

Membrane Nitrogen Generator Application:

1. Metallurgy: For anneal protection, agglomeration protection, nitrogen, furnace washing and blowing

etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper

process,

2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement,

gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber,

plastic, tire, polyurethane, biological technology, intermediate, etc.

Selective Permeability

Nitrogen membranes separate gases by the principle of selective permeation across the membranes

wall.

For nitrogen polymeric membranes, the rate of permeation of each gas is determined by its solubility

in the nitrogen membrane material, and the rate of diffusion through the molecular free volume in the

nitrogen membrane wall. Gases that exhibit high solubility in the nitrogen membranes, and gases that

are small in molecular size, permeate faster than larger, less soluble gases.

Fast Gases and Slow Gases

"Fast" gases permeate through the nitrogen membrane wall more readily than "slow" gases, thus

separating the original gas mixture into two streams. The purity of the desired streams can be adjusted

by changing the operating conditions.

The ability of a nitrogen membranes to separate two gases is determined by their "selectivity", the ratio

of permeabilities of the two gases. The higher the selectivity, the more efficient the separation and less

energy is needed to run the system.

Membrane Nitrogen Generator Specifications:

During the last 10 years,about 98% old customers firmly choose SINCE

Many years of experience and expertise in manufacturing and supplying gas plants;

,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

company who got ,TS (Manufacture License of special equipment)

CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen

generator.

Excellent infrastructure set up teamed by experienced and qualified engineers.

Sophisticated and developed R&D wing in assistance for installation and use of plants.

Nitrogen Membrane Generators

Nitrogen Membrane Unit

Membrane Nitrogen Generator For Beverage

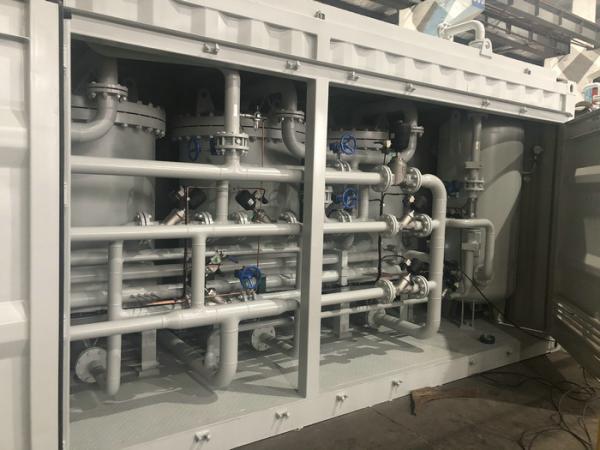

Industrial Membrane Nitrogen Generator For Food And Beverage 220V/50Hz Images
